Description

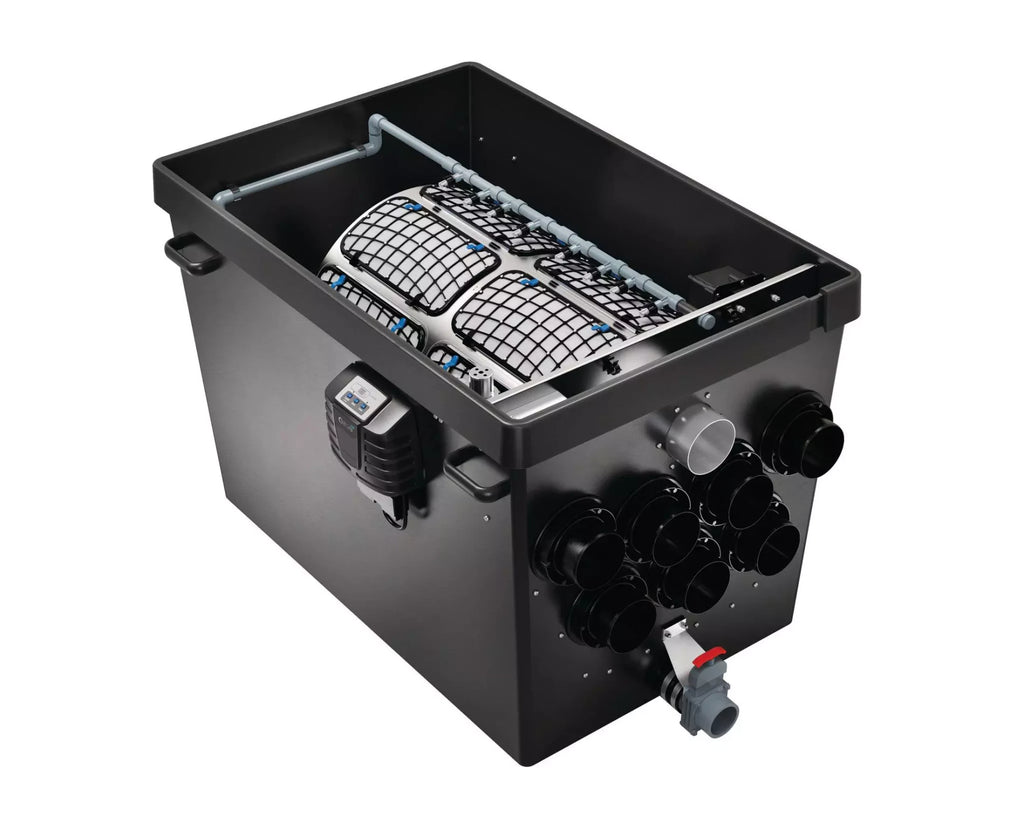

- Modern modular filter system for professional water quality where space is at a minimum
- Mature, professional technology with more than three years of development time
- Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
- Outstanding filter capacity with intelligent control functions
- Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product "Made in Germany" (except pressure pump)
- System requirements: To use the EGC functions, an InScenio EGC Controller Home/Cloud, InScenio FM Master EGC Home/Cloud, InScenio FM Master WiFi EGC or InScenio FM Master WiFi Version 2.0 or later is required.
Dimensions (L x W x H) mm 1330 x 875 x 820 Rated voltage 230 V / 50 Hz Power consumption W 5 Power consumption, cleaning W 1600 Cable length m 5.00 + 5.00 Net weight kg 125.00 Guarantee (+ request guarantee) Years 2 + 1 Control unit Microcontroller Temperature display Digital Coarse debris extraction µm 60 Number of nozzles/rinse quantity 8 x 2.5 l/min Scavenging pump 7 bar Automatic rinsing system manually, Sensor, Time interval Number of sieve elements Units 16 Filter intake surface cm² 6900 Material GRP Duroplast/stainless steel Number of inlets Units 7 Inlet connections DN 110 Number of outlets Units 2 Outlet connections DN 150 Sludge discharge connections DN 75 Flush trough connection DN 110 Connection to Bitron Gravity Min. flow rate l/h 10000 Max. flow rate l/h 66000 Installation height above water level cm 13.5 Possible water level difference -20 mm Type of use Gravity fed system Other Pollutant discharge incl. slide valve
