Description

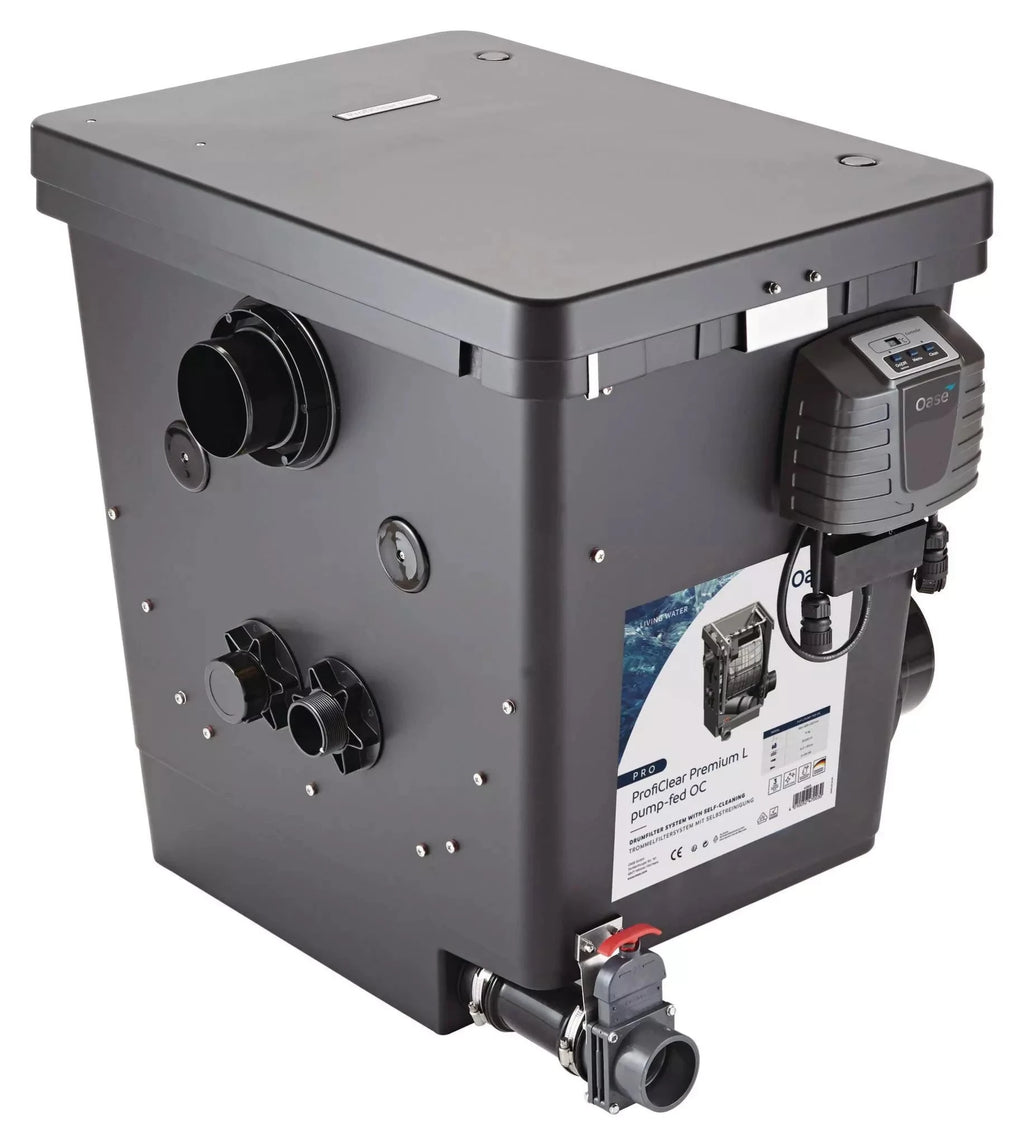

- Modern modular filter system for professional water quality where space is at a minimum
- Mature, professional technology with more than three years of development time
- Filtration with a filter capacity to 60 µm
- Automatic self-cleaning
- A microcontroller system, suitable for outdoor use, monitors and controls the functions
- Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum
- Particularly quiet in operation
- Quality high-pressure pump for flushing the drum in the scope of delivery
- Possibilities for connection to the Easy Garden Control System (EGC)
- Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
- Outstanding filter capacity with intelligent control functions
- Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product "Made in Germany" (except pressure pump)
- Safety level switch prevents jamming due to debris particles
- Additional 2" inputs with non-return valve for integration of additional pumps
- Flow capacity up to 25 m³/h
Dimensions (L x W x H) mm 830 x 600 x 820 Rated voltage 230 V / 50 Hz Power consumption W 5 Power consumption, cleaning W 1050 Cable length m 2.00 + 1.00 Net weight kg 74.50 Guarantee (+ request guarantee) Years 2 + 1 Control unit Microcontroller Temperature display Digital Coarse debris extraction µm 60 Number of nozzles/rinse quantity 4 x 2.5 l/min Scavenging pump 6 bar Automatic rinsing system manually, Sensor, Time interval Number of sieve elements Units 8 Filter intake surface cm² 4200 Material GRP Duroplast/stainless steel Inlet connections mm 50 Inlet connections 2 x 2" + Bitron Number of outlets Units 2 Outlet connections DN 150 Sludge discharge connections DN 75, DN 110 Flush trough connection DN 110 Connection to Bitron C 72 - 110 W, Bitron Eco 120 - 240 W Min. flow rate l/h 10000 Max. flow rate l/h 25000 Installation height above water level cm 40.0 Possible water level difference 5 cm Type of use Pump fed system Other Pollutant discharge incl. slide valve
