Description
- Incl. OASE Clear Water Guarantee
- Significantly less maintenance is required, thanks to coarse debris extraction
- More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
- Cleaning of filter sponges directly in the filter, without removal
- Sludge drain with slide valve for removing debris from the filter system
- Different filter media for optimal development of filter bacteria
- Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
- Optimally matched to OASE AquaMax Eco filter pumps
- Direct connection possibility for Bitron C and Eco UVC clarifiers
- Reinforced strap material for an extended service life
- Double-sealed motor for an extended service life
- Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
- Sludge basket with greater volume and simplified handling
- Rubberised separating lip for outstanding separation result
- Free brush for occasional cleaning of the belt filter
- Manual belt run now possible via button
- Highly effective flow-through filter for ponds up to 40.0 m³
- Lids of models 40,000 and 60,000 with storm-safe fastening clips
40000
Dimensions (L x W x H) mm 788 x 590 x 445 Rated voltage (primary, secondary) 230 V / 50 Hz, 12 V / AC Power consumption W 5 Cable length 12 V device (with power unit) m 2.10 (Power unit) + 5.00 Net weight kg 20.00 Guarantee (+ request guarantee) Years 2 + 1 Number of filter foams, total Units 8 Number of blue filter foams Units 2 Number of red filter foams Units 3 Number of purple filter foams Units 3 Special filter granulate kg 2.50 Temperature display No Coarse debris extraction µm 300 Inlet connections mm 25 / 32 / 38 Inlet connections 1", 1 ¼", 1 ½" Outlet connections DN 75 Sludge discharge connections DN 50 Min. flow rate l/h 4000 Max. flow rate l/h 9000 Suitable for ponds up to max. m³ 40.0 Suitable for ponds with fish stock m³ 20.0 Suitable for ponds with koi m³ 10.0 Connection to Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
60000
Dimensions (L x W x H) mm 788 x 590 x 545 Rated voltage (primary, secondary) 230 V / 50 Hz, 12 V / AC Power consumption W 5 Cable length 12 V device (with power unit) m 2.10 (Power unit) + 5.00 Net weight kg 23.50 Guarantee (+ request guarantee) Years 2 + 1 Number of filter foams, total Units 8 Number of blue filter foams Units 2 Number of red filter foams Units 3 Number of purple filter foams Units 3 Special filter granulate kg 3.50 Temperature display No Coarse debris extraction µm 300 Inlet connections mm 25 / 32 / 38 Inlet connections 1", 1 ¼", 1 ½" Outlet connections DN 75 Sludge discharge connections DN 50 Min. flow rate l/h 6000 Max. flow rate l/h 11000 Suitable for ponds up to max. m³ 60.0 Suitable for ponds with fish stock m³ 30.0 Suitable for ponds with koi m³ 15.0 Connection to Bitron C 36 - 110 W, Bitron Eco 120 - 240 W

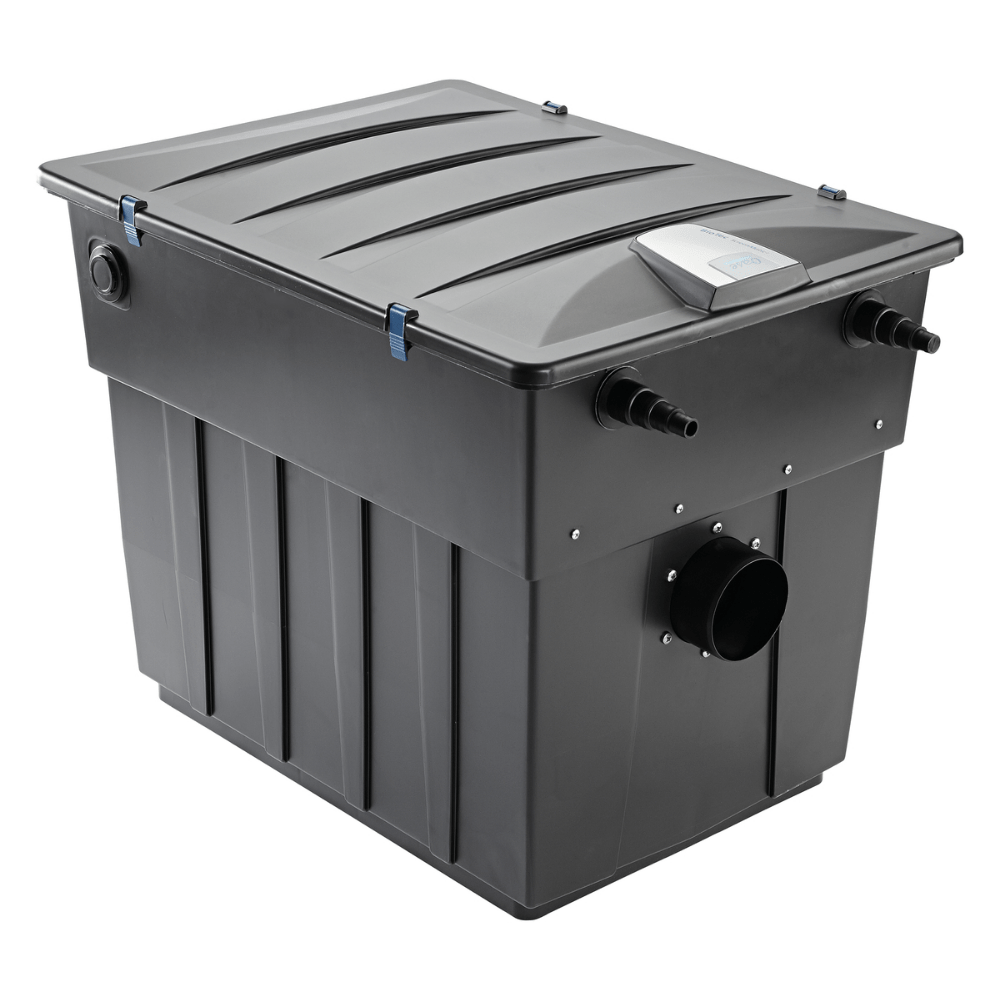

90000
Dimensions (L x W x H) mm 788 x 590 x 645 Rated voltage (primary, secondary) 230 V / 50 Hz, 12 V / AC Power consumption W 5 Cable length 12 V device (with power unit) m 2.10 (Power unit) + 5.00 Net weight kg 27.00 Guarantee (+ request guarantee) Years 2 + 1 Number of filter foams, total Units 16 Number of blue filter foams Units 4 Number of red filter foams Units 6 Number of purple filter foams Units 6 Special filter granulate kg 5.00 Temperature display No Coarse debris extraction µm 300 Inlet connections mm 25 / 32 / 38 / 50 Inlet connections 1", 1 ¼", 1 ½", 2" Outlet connections DN 110 Sludge discharge connections DN 50 Min. flow rate l/h 8000 Max. flow rate l/h 12500 Suitable for ponds up to max. m³ 90.0 Suitable for ponds with fish stock m³ 45.0 Suitable for ponds with koi m³ 22.5 Connection to Bitron C 36 - 110 W, Bitron Eco 120 - 240 W

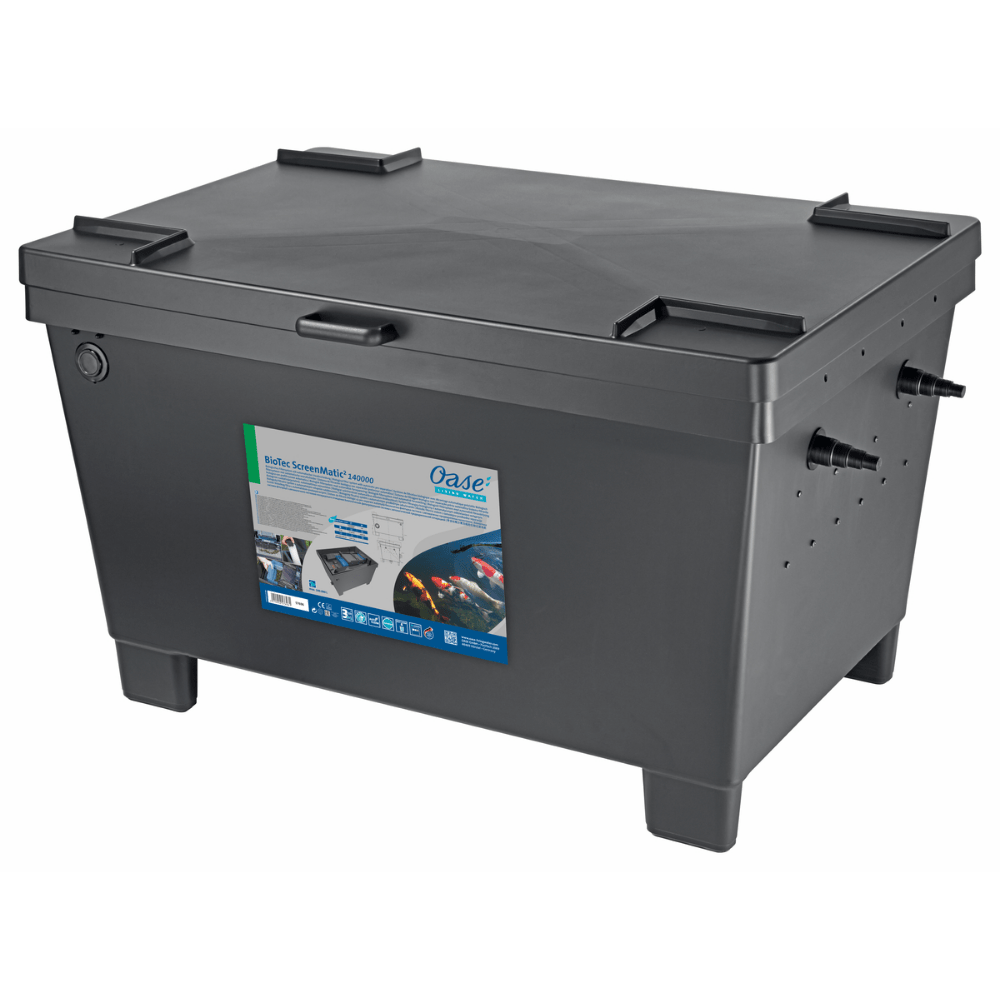

140000
Dimensions (L x W x H) mm 1200 x 800 x 760 Rated voltage (primary, secondary) 230 V / 50 Hz, 12 V / AC Power consumption W 5 Cable length 12 V device (with power unit) m 2.10 (Power unit) + 5.00 Net weight kg 105.00 Guarantee (+ request guarantee) Years 2 + 1 Number of filter foams, total Units 18 Number of blue filter foams Units 4 Number of red filter foams Units 7 Number of purple filter foams Units 7 Special filter granulate kg 14.50 Temperature display No Coarse debris extraction µm 300 Inlet connections mm 25 / 32 / 38 / 50 Inlet connections 1", 1 ¼", 1 ½", 2" Outlet connections DN 110 Sludge discharge connections DN 75 Min. flow rate l/h 8000 Max. flow rate l/h 17500 Suitable for ponds up to max. m³ 140.0 Suitable for ponds with fish stock m³ 70.0 Suitable for ponds with koi m³ 35.0 Connection to Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
